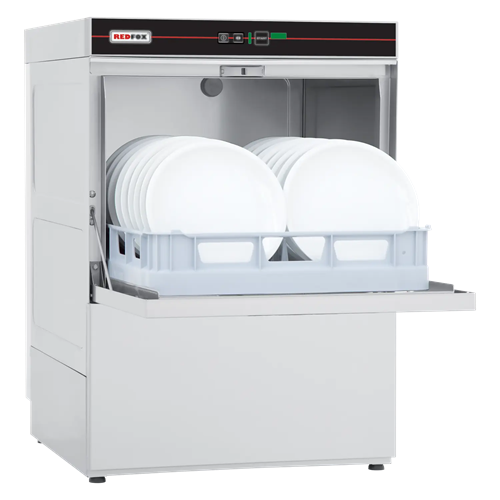

Redfox diskmaskin under bänk QQI 52 TP
Diskmaskin som placeras under bänk anpassad för restaurang, café, bar och pizzerior.
OBS! BEGAGNAD!
Diskmaskinen togs i bruk Maj -2025 och har använts som glasdiskmaskin i en bar på en restaurang. Mycket sparsamt använd!
Diskmaskinen har 6 snabba diskprogram mellan 60 till 150 sekunder.
Enkelmantlad diskmaskin men har ändå en låg ljudnivå.
Det ingår 3 diskbackar (tallrik, glas och bestick) som är 50x50cm i storlek.
Alla standard diskbackar för restaurangbruk passar i maskinen.
Vattenförbrukningen är endast 2,1 liter per diskning.
Diskmaskinen levereras med diskmedelspump, torkmedelspump samt tömningspump.
Finmaskiga filter i maskinen gör att inget kommer in i diskpumpen eller i avloppspumpen.
LED display som visar temperaurer och diskcykel.
Rundade hörn gör maskinen hygienisk och enkel att rengöra.
Specifikationer diskmaskin QQI 52 TP:
| Net Width [mm] |
575 |
| Net Depth [mm] |
605 |
| Net Height [mm] |
820 |
| Net Weight [kg] |
55.00 |
| Gross Width [mm] |
625 |
| Gross depth [mm] |
655 |
| Gross Height [mm] |
870 |
| Gross Weight [kg] |
61.00 |
| Device type |
Electric unit |
| Control type |
Digital |
| Material |
AISI 304 |
| Power electric [kW] |
5.400 |
| Loading |
400 V / 3N - 50 Hz |
| Number of programs |
6 |
| Opening of device |
Tilting down |
| Door clear height [mm] |
365 |
| Inlet pressure [bar] |
2-4 |
| Adjustable feet |
Yes |
| Number of skin |
1 |
| Self-cleaning cycle |
No |
| Boiler capacity [ l ] |
6.00 |
| Boiler power [kW] |
4.900 |
| Basin volume [l] |
20 |
| Tank power [kW] |
2.100 |
| Number of arms for both rinsing and washing |
2 |
| Arm connection |
Hand loosen/tighten screw |
| Washing arm type |
Rotatable two-pronged |
| Washing arm material |
Composite |
| Rinsing arm type |
Rotating two-pronged |
| Rinsing arm material |
Composite |
| Rack support |
Pressed |
| Tank surface strainers |
composite |
| Drain filter |
ArchiMedes - double filtration with overflow discharge ensures only 18% loss of clean water to waste |
| Thermostop |
Yes |
| Boiler thermostat adjust |
Yes |
| Rack feed capacity |
24-30-60 |
| Detergent and rinse pump system |
ProDose - accurate dosing with a peristaltic pump |
| Energy Saving system |
EnergySaving - Energy saving system due to lowering the boiler temperature |
| Hot water electric valve |
Yes |
| Rack size [mm] |
500 x 500 |
| Display type |
3 local display + diode bar |
| USB port |
Yes, for Firmware actualisation |
| Drain pump |
Yes |
| Self-diagnostics |
Yes |
| Wash pump type |
two-way - DuoFlow |
| Detergent dispenser |
Yes |
| Rinse aid dispenser |
Yes |
| Water consumption of the washing cycle [l/basket] |
2,1 |
| Washing cycle time [s/basket] |
60-120-150 |
| Rinse water temperature [°C] |
80 |
| Standard equipment for device |
1x glass basket, 1x plate basket, 1x cutlery basket |
| Program ProSpeed |
Yes |
| Program ProFessional |
Yes |
| Program ProTemp |
Yes |
| Program ProClean |
Yes |
| Program ProDrain |
Yes |
| Program ProLong |
Yes |
| Noise of device |
59,5 |
| Cross-section of conductors CU [mm²] |
0,75 |
| Water supply connection |
3/4" |
| Diameter nominal |
DN 50 |
